NI Compuτe: Subnet Miner Setup

How to Mine on the Bittensor NI Compute Subnet (SN27) - The Permission-less Compute Market

1. INTRODUCTION

For miners interested in joining this innovative network, Subnet 27 offers the opportunity to contribute computing resources and earn $NI in return. This guide is structured to provide a comprehensive breakdown of how you can get started with contributing to Bittensor’s commodity markets using your compute power.

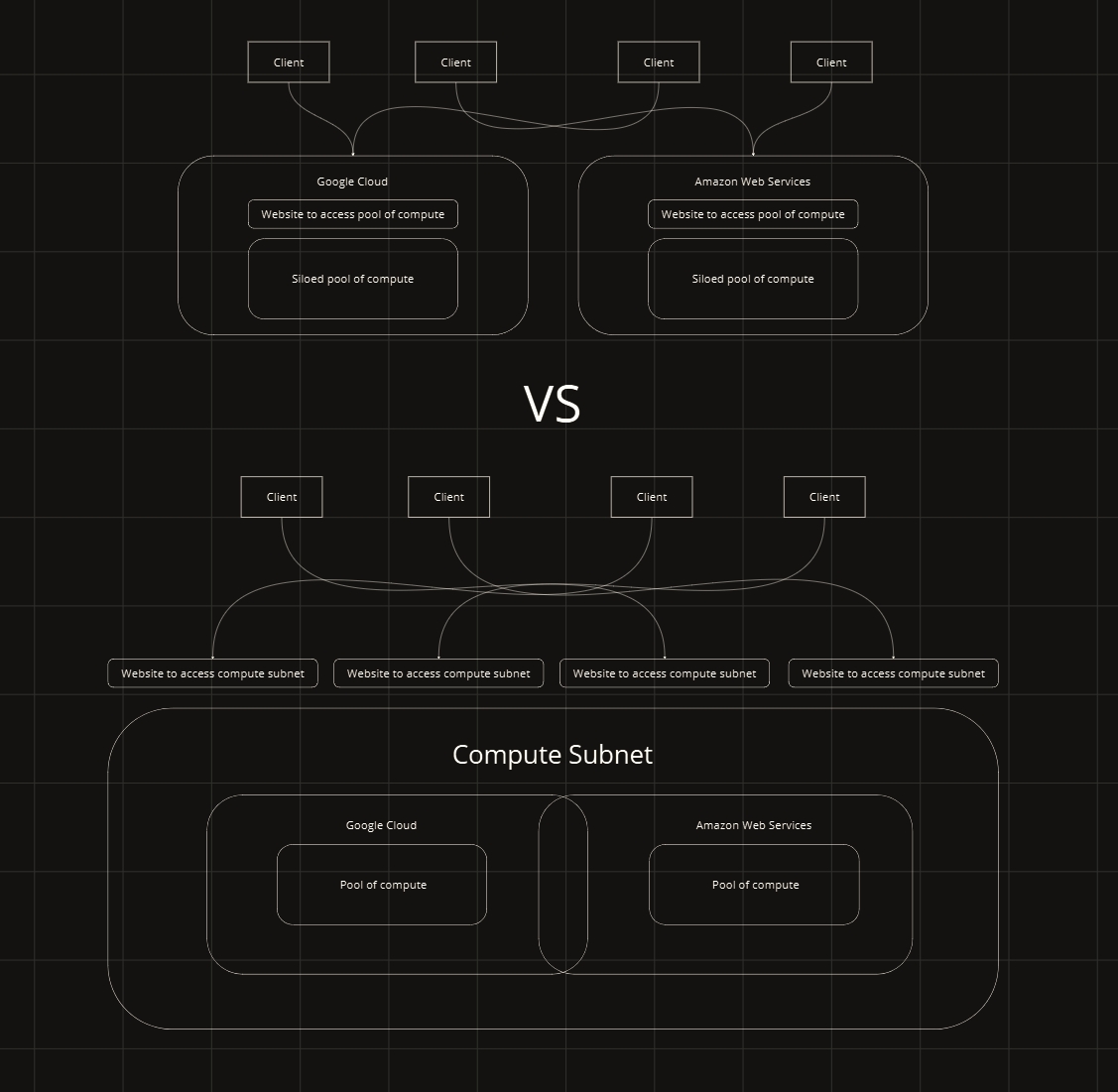

Decentralizing Compute

NI Compute decentralizes computing resources by combining siloed pools of compute on a blockchain to be validated and accessed trustlessly. This opens a door to scalable compute without the constraints of centralized power.

Subnetwork 27

Powered By Bittensor

NI Compute brings, arguably, the most important and finite resource needed for the creation of machine intelligence. All network participants will have access to an ever-expanding pool of compute for all development needs.

What is a decentralized supercomputer without access to permissionless compute?

Subnetwork 27

---

Miner Overview:

Miners contribute processing resources, notably GPU (Graphics Processing Unit) instances.

Performance-Based Mining: The system operates on a performance-based reward mechanism, where miners are incentivized through a dynamic reward structure correlated to the processing capability of their hardware. High-performance devices are eligible for increased compensation, reflecting their greater contribution to the network's computational throughput. Emphasizing the integration of GPU instances is critical due to their superior computational power, particularly in tasks regarding machine learning.

---

Rent A Server From Subnet 27: https://app.neuralinternet.ai/

Compute Subnet Github: https://github.com/neuralinternet/compute-subnet

Compute Subnet Discord Channel: https://discord.gg/t7BMee4w

Real-Time Compute Subnet Metrics: https://opencompute.streamlit.app/

We greatly appreciate and encourage contributions from the community to help improve and advance the development of the Compute Subnet. We have an active bounty program in place to incentivize and reward valuable contributions.

If you are interested in contributing to the Compute Subnet, please review our Reward Program for Valuable Contributions document on GitHub. This document outlines the details of the bounty program, including the types of contributions eligible for rewards and the reward structure.

Reward Program for Valuable Contributions: https://github.com/neuralinternet/compute-subnet/blob/main/CONTRIBUTING.md

Validator CLI Guide For Reserving Compute Subnet Resources: Validator Utilization of Compute Resources

Example Cloud Providers:

We do not support Containerized (docker)-based cloud platforms such as Runpod, VastAI and Lambda.

We strongly urge miners to provide their own hardware to foster and build a stronger network for all. Providing your own in-house hardware may come with its own benefits.

If you cannot supply your hardware in-house, here are some usable GPU providers:

• Oracle

• Coreweave

• FluidStack

• Latitude.sh (referral code: BITTENSOR27)

• Oblivus (referral code: BITTENSOR27 - 2% cash back in platform expenditures)

Examples of GPUs to rent (listed in order of computing power):

GPU Base Scores: The following GPUs are assigned specific base scores, reflecting their relative performance. To understand scoring please see the Proof-of-GPU page here:

• NVIDIA H200: 4.00

• NVIDIA H100 80GB HBM3: 3.30

• NVIDIA H100 80GB PCIE: 2.80

• NVIDIA A100-SXM4-80GB: 1.90

2. INSTALLATION

---

This installation process requires Ubuntu 22.04 and python3.8 or higher. You are limited to one external IP per UID. There is automatic blacklisting in place if validators detect anomalous behavior. Port 4444 is to be opened for your miner to function properly.

Install Docker

To run a miner, you must install Docker and run the service. If Docker is already installed on your machine, scroll down to step 2.1

Install Link: https://docs.docker.com/engine/install/ubuntu/#install-using-the-repository

Verify that the Docker Engine installation is successful by running the hello-world image.

This command downloads a test image and runs it in a container. When the container runs, it prints a confirmation message and exits.

sudo docker run hello-world

2.1 BEGIN BY INSTALLING BITTENSOR:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/opentensor/bittensor/master/scripts/install.sh)"

See Bittensor’s documentation for alternative installation instructions.

Bittensor Documentation: docs.bittensor.com

2.2 VERIFY THE INSTALLATION:

Verify using the btcli command

btcli --help

If this does not result in the expected output try adding python to path using: export PATH=$PATH:$(python3 -m site --user-base)/bin

which will give you an output similar to below:

usage: btcli <command> <command args>

bittensor cli v6.9.4

positional arguments:
  {subnets,s,subnet,root,r,roots,wallet,w,wallets,stake,st,stakes,sudo,su,sudos,legacy,l,info,i}
    subnets (s, subnet)
                        Commands for managing and viewing subnetworks.
    root (r, roots)     Commands for managing and viewing the root network.
    wallet (w, wallets)
                        Commands for managing and viewing wallets.
    stake (st, stakes)  Commands for staking and removing stake from hotkey accounts.
    sudo (su, sudos)    Commands for subnet management
    legacy (l)          Miscellaneous commands.
    info (i)            Instructions for enabling autocompletion for the CLI.

options:
  -h, --help            show this help message and exit
  --print-completion {bash,zsh,tcsh}
                        Print shell tab completion script

---

Create a Cold & Hotkey with the commands below:

Follow the instruction following both of these commands

btcli w new_coldkey

btcli w new_hotkey

If you already have a Key, you can regenerate it ‘safely’ on a machine using btcli w regen_coldkeypub. However, you must regen the full key if you plan to register or transfer from that wallet. regen_coldkeypub lets you load the key without exposing your mnemonic to the server. If you want to, you can generate a key pair on a local safe machine to use as cold storage for the funds that you send.

btcli w regen_coldkeypub

btcli w regen_coldkey

btcli w regen_hotkey

4. CLONE COMPUTE-SUBNET

---

git clone https://github.com/neuralinternet/Compute-Subnet.git

Access the Compute-Subnet Directory

cd Compute-Subnet

5. COMPUTE SUBNET DEPENDENCIES

---

For optimal functionality of the Compute Subnet, it's essential to install the appropriate graphics drivers and dependencies.

Required dependencies for validators and miners:

python3 -m pip install -r requirements.txt
python3 -m pip install --no-deps -r requirements-compute.txt
python3 -m pip install -e .

5.1 EXTRA DEPENDENCIES FOR MINERS:

In case you have missing requirements

sudo apt -y install ocl-icd-libopencl1 pocl-opencl-icd

Download the NVIDIA CUDA Toolkit

To ensure optimal performance and compatibility, it is strongly recommended to install the latest available CUDA version from NVIDIA.

If Nvidia toolkit and drivers are already installed on your machine, scroll down to verify then move on to the Wandb Setup.

# Visit NVIDIA's official CUDA download page to get the latest version:
# https://developer.nvidia.com/cuda-downloads

# Select your operating system, architecture, distribution, and version to get the appropriate installer.

# Example for Ubuntu 22.04 (replace with the latest version as needed):

# Download the CUDA repository package (update the URL to the latest version)


wget https://developer.download.nvidia.com/compute/cuda/12.3.1/local_installers/cuda-repo-ubuntu2204-12-3-local_12.3.1-545.23.08-1_amd64.deb

sudo dpkg -i cuda-repo-ubuntu2204-12-3-local_12.3.1-545.23.08-1_amd64.deb

sudo cp /var/cuda-repo-ubuntu2204-12-3-local/cuda-*-keyring.gpg /usr/share/keyrings/

sudo apt-get update

sudo apt-get -y install cuda-toolkit-12-3

sudo apt-get -y install -y cuda-drivers

export CUDA_VERSION=cuda-12.3
export PATH=$PATH:/usr/local/$CUDA_VERSION/bin
export LD_LIBRARY_PATH=/usr/local/$CUDA_VERSION/lib64

echo "">>~/.bashrc
echo "PATH=$PATH">>~/.bashrc
echo "LD_LIBRARY_PATH=$LD_LIBRARY_PATH">>~/.bashrc

source ~/.bashrc

You may need to reboot the machine at this point to finalize changes

sudo reboot

The simplest way to check the installed CUDA version is by using the NVIDIA CUDA Compiler (nvcc).

nvidia-smi
nvcc --version

The output of which should look something like

+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 545.29.06              Driver Version: 545.29.06    CUDA Version: 12.3     |
|-----------------------------------------+----------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |         Memory-Usage | GPU-Util  Compute M. |
|                                         |                      |               MIG M. |
|=========================================+======================+======================|
|   0  NVIDIA RTX                     Off | 00000000:05:00.0 Off |                  Off |
| 30%   34C    P0              70W / 300W |  400MiB / 4914000MiB |      4%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

+---------------------------------------------------------------------------------------+
| Processes:                                                                            |
|  GPU   GI   CI        PID   Type   Process name                            GPU Memory |
|        ID   ID                                                             Usage      |
|=======================================================================================|
|  No running processes found                                                           |
+---------------------------------------------------------------------------------------+

nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2023 NVIDIA Corporation
Built on Fri_Nov__3_17:16:49_PDT_2023
Cuda compilation tools, release 12.3, V12.3.103
Build cuda_12.3.r12.3/compiler.33492891_0

Wandb Setup

To log into the wandb project named opencompute from neuralinternet, miners and validators need a wandb API key. This is necessary for your miner to be properly scored. You can obtain a free API key by making an account here: https://wandb.ai/

Inside of the Compute-Subnet directory; Rename the .env.example file to .env and replace the placeholder with your actual API key.

You can now track your mining and validation statistics on Wandb. For access, visit: https://wandb.ai/neuralinternet/opencompute. To view the networks overall statistics check out our real-time dashboard here: https://opencompute.streamlit.app/

PM2 Installation

Install and run pm2 commands to keep your miner online at all times.

sudo apt update

sudo apt install npm

sudo npm install pm2 -g

Confirm pm2 is installed and running correctly

pm2 ls

5.2 INSTALL NVIDIA DOCKER SUPPORT

For more information, refer to the NVIDIA Container Toolkit installation guide: https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/latest/install-guide.html#installing-with-apt

distribution=$(. /etc/os-release;echo $ID$VERSION_ID)

curl -s -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add -

curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.list | sudo tee /etc/apt/sources.list.d/nvidia-docker.list

sudo apt update

sudo apt-get install -y nvidia-container-toolkit

sudo apt install -y nvidia-docker2

6. START THE DOCKER SERVICE IN COMPUTE SUBNET

---

cd Compute-Subnet

sudo groupadd docker

sudo usermod -aG docker $USER

sudo systemctl start docker

sudo apt install at

Make sure to check that docker is properly installed and running correctly:

sudo service docker status

This is an example of it running correctly:

root@merciful-bored-zephyr-fin-01:~# sudo service docker status
● docker.service - Docker Application Container Engine
     Loaded: loaded (/lib/systemd/system/docker.service; enabled; vendor preset>
     Active: active (running)

7.0 SETTING UP A MINER

---

Hotkey Registration

At this point, you will need some $TAO in your coldkey address for miner registration. Once your coldkey is funded, run the command below to register your hotkey:

btcli s register --subtensor.network finney --netuid 27

For testnet use: btcli s register --subtensor.network test --netuid 15

If you get the error ‘too many registrations this interval’ it means the max amount of registrations that cycle has been reached, and you need to wait a bit and try again. You can check the registration cost here

7.1 SETTING UP UFW FOR MINER:

Open your desired ssh port for allocations; default is 4444 (required for allocation):

sudo apt update

sudo apt install ufw

Below we open the allocation SSH port

sudo ufw allow 4444

TCP Ports: Open ports using ufw (put any number in place of xxxx and yyyy of your choice) and use them as axon port.

sudo ufw allow xxxx:yyyy/tcp

sudo ufw allow 22/tcp

sudo ufw enable

sudo ufw status

7.2 RUNNING THE MINER:

Miner options

• --miner.whitelist.not.enough.stake: (Optional) Whitelist the validators without enough stake. Default: False.

• --miner.whitelist.not.updated: (Optional) Whitelist validators not using the last version of the code. Default: False.

• --miner.whitelist.updated.threshold: (Optional) Total quorum before starting the whitelist. Default: 60. (%)

Now, using pm2, run miner as:

pm2 start ./neurons/miner.py --name MINER --interpreter python3 -- --netuid 27 --subtensor.network finney --wallet.name COLDKEYNAME --wallet.hotkey HOTKEYNAME --axon.port XXXX --axon.ip xx.xxx.xxx.xx --logging.debug

SubVortex subtensor (recommended):

pm2 start ./neurons/miner.py --name MINER --interpreter python3 -- --netuid 27 --subtensor.network subvortex.info:9944 --wallet.name COLDKEYNAME --wallet.hotkey HOTKEYNAME --axon.port xxxx --logging.debug

To set up your miner, first replace COLDKEYNAME & HOTKEYNAME with the names of your keys. Then, update axon.portwith a 4-digit number in the range you opened for xxxx:yyyy above. For the parameters --axon.external and --axon.ip, use your miner machine's public IP address in place of the 'xxxxx's. You can find this IP by running hostname -I. Though not always necessary, these parameters can be crucial for resolving certain connectivity issues.

When operating a miner and you have local subtensor running on a separate machine, it's crucial to add and adjust the --subtensor.chain_endpoint parameter. This should be set to the IP and port (XXX.XX.XXX.XXX:XXXX) where your subtensor is running. If your subtensor is local to the miner machine, this parameter can be removed.

8. CHECKING MINER LOGS

---

After launching the compute miner, you can then check the logs using the two commands below:

pm2 logs

pm2 monit

Run pm2 logs to debug any issues and view information on your miner. Specifically find your wandb run to view more live information. In the wandb project you can view the scores you receive from validators.

pm2 miner logs

You can view your scores through the wandb run of a Validator

Expand the stats section

Find your miner UID

10. MORE USEFUL COMMANDS

btcli s metagraph --netuid 27

btcli s list

btcli wallet overview --subtensor.network finney --all --netuid 27

pm2 logs miner --lines 1000 | grep -i "Challenge.*found"

pm2 logs -f | grep -E "SUCCESS|INFO|DEBUG|ERROR"

nvidia-smi --query-gpu=name,memory.total,clocks.gr,clocks.mem --format=csvgrep "Challenge .* found in" "/home/ubuntu/.pm2/logs/MINER-out.log" | sed -E 's/.* found in ([0-9.]+) seconds.*/\\1/' | awk '{sum+=$1; count+=1} END {if (count > 0) print sum/count; else print "No data to calculate average"}’

btcli w transfer --subtensor.network local --dest DESTINATION_WALLET --wallet.name default --amount 0

btcli stake remove --subtensor.network local --all --all_hotkeys --wallet.name default
